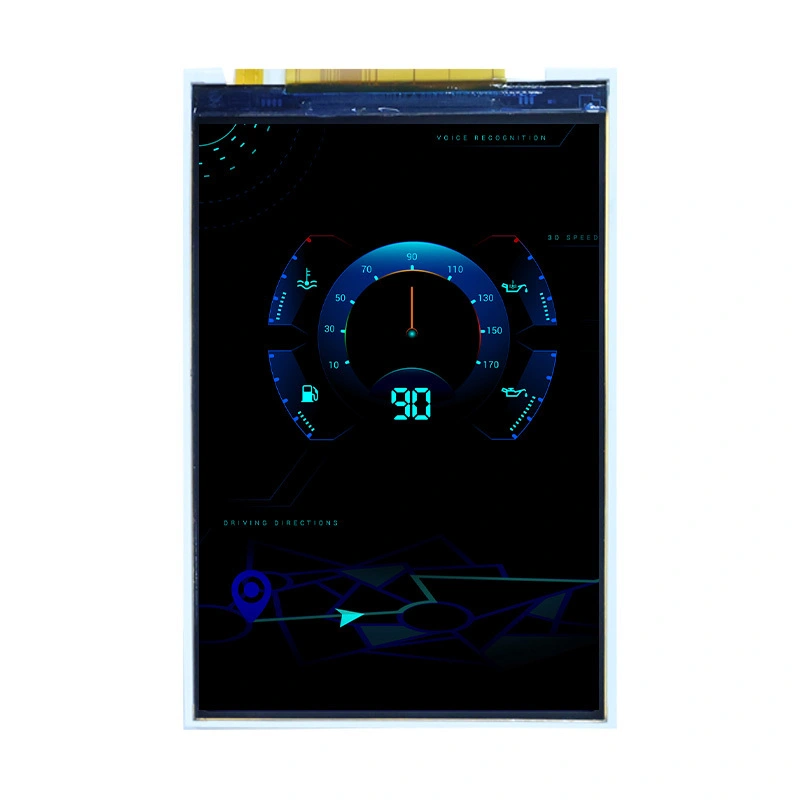

CNK 3.5″ TFT LCD Display Screen

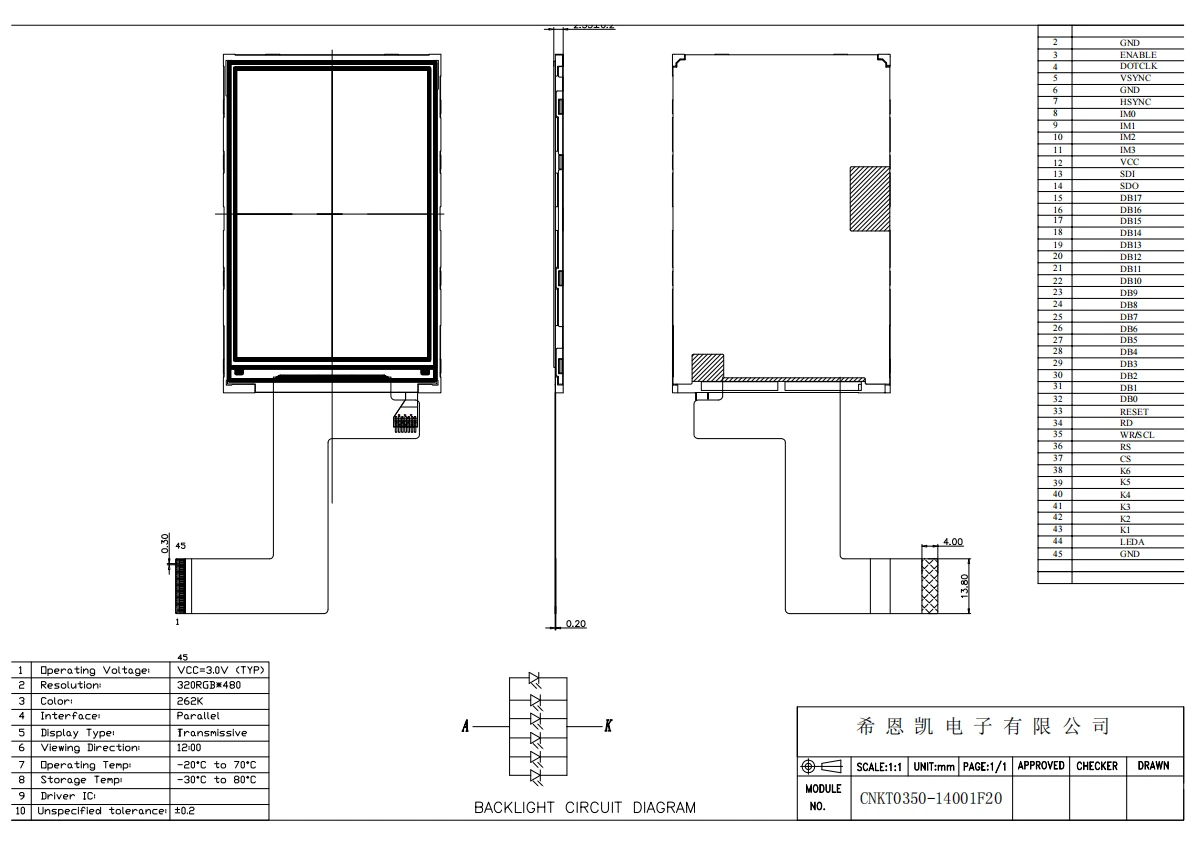

3.5-inch TFT LCD display module, product model is CNKT0350-14001F20, resolution is 320*480px

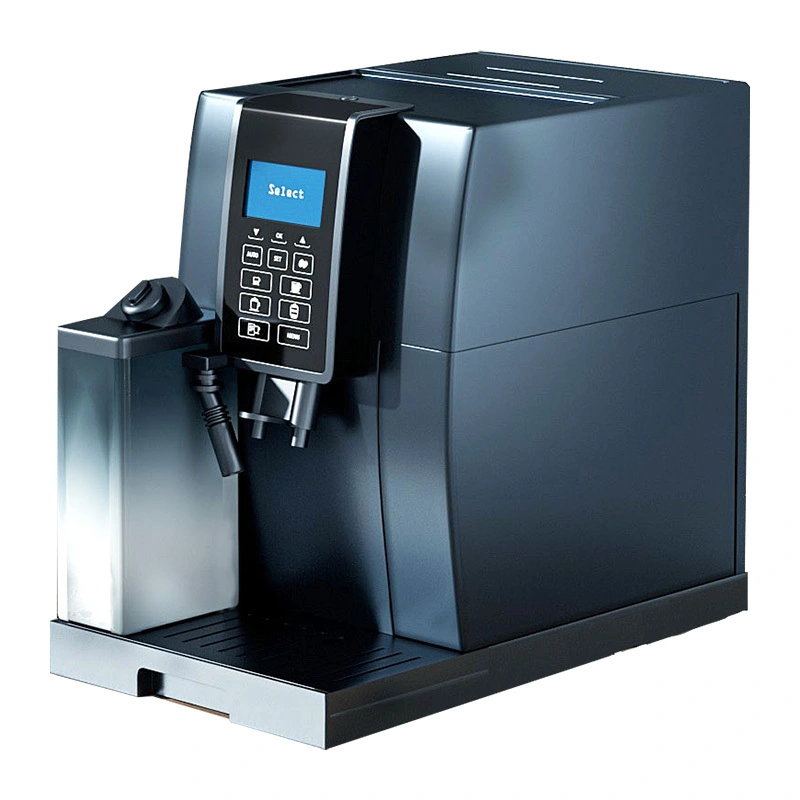

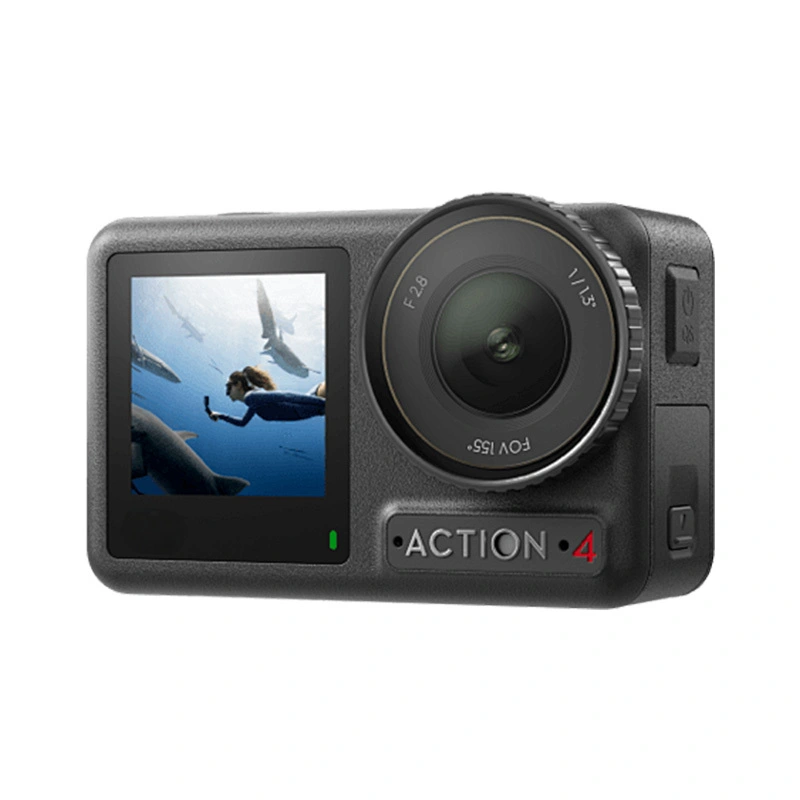

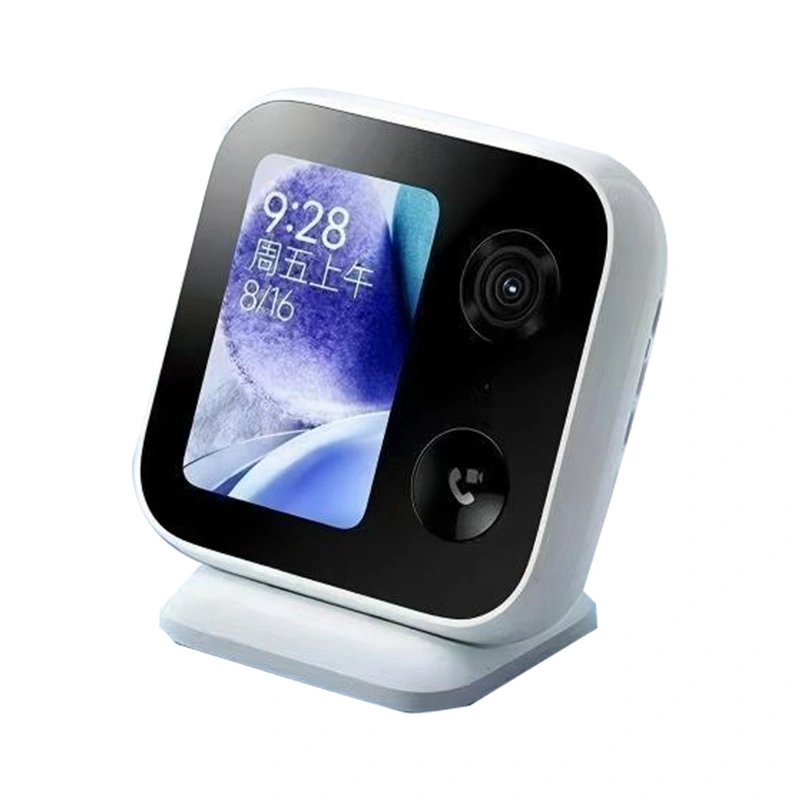

viewing angle is full viewing angle, working temperature is -20~70℃, storage temperature is -30~80℃, interface type is MCU, product application is relatively wide, mainly used in smart cameras, sports cameras, smart coffee machines, smart cameras, unmanned aircraft and other high-tech products, also used in medical equipment, industrial equipment and smart devices.

We have rich experience in customizing monochrome screen products:

1. Size: customized according to customer requirements
2. Type: TN/HTN/STN/FSTN/VA/DFSTN/ASTN/PNLCD
3. Operating temperature type: 0~+50℃, -10~+60℃, -20~+70℃, -40~+85℃, -40~+105℃
4. Attributes: positive display/negative display
5. Polarizer type: full-transparent, semi-transparent, reflective
6. Connection method: COG, COB, I2C, SPI serial port,
7. Viewing angle: 3 o’clock direction, 6 o’clock direction, 9 o’clock direction, 12 o’clock direction, full viewing angle
8. Voltage: customized
9. LCD screen glass thickness: customized
