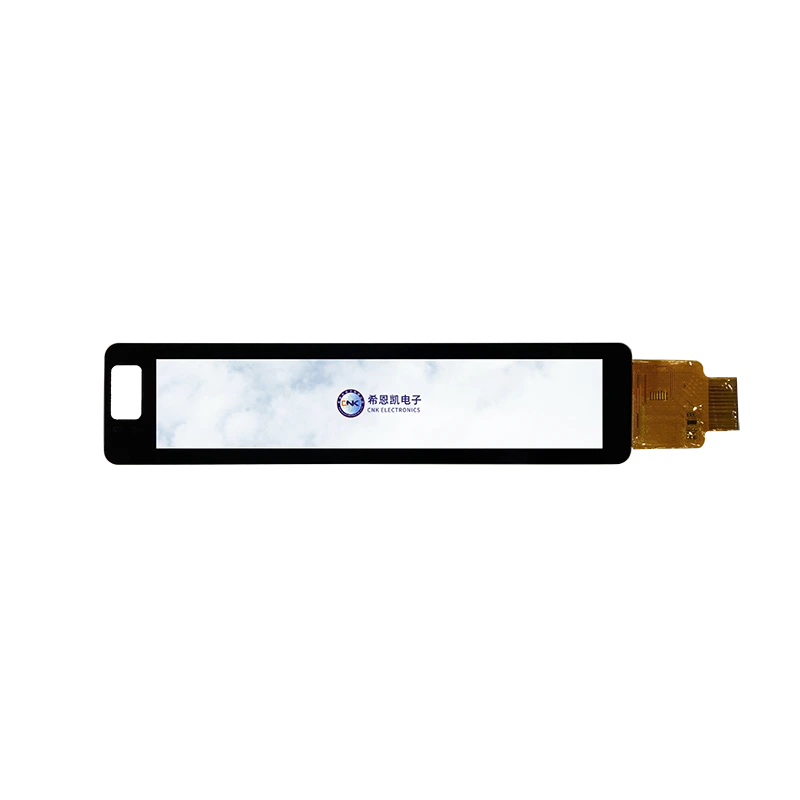

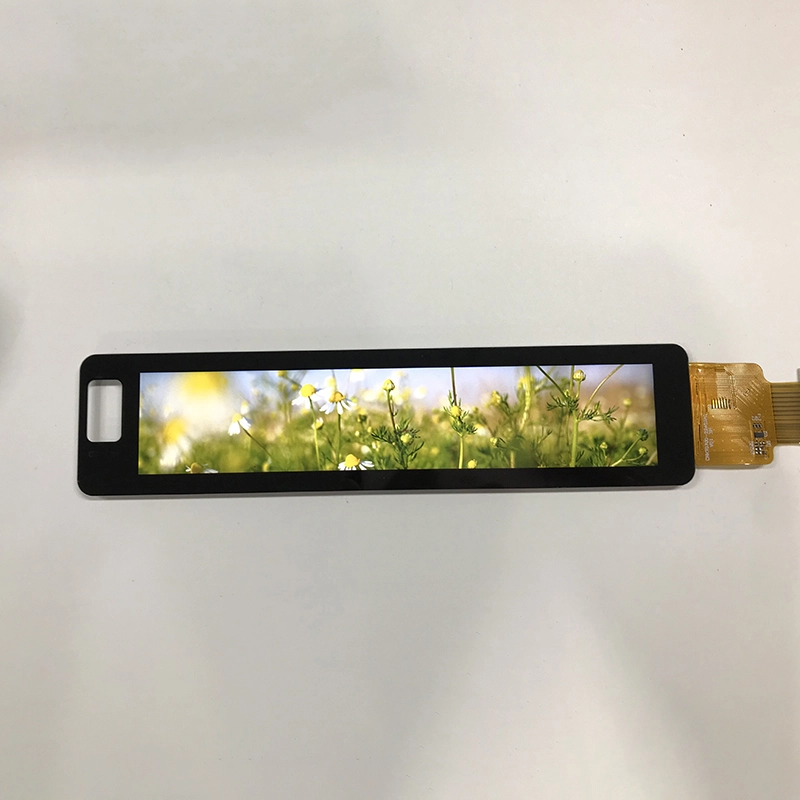

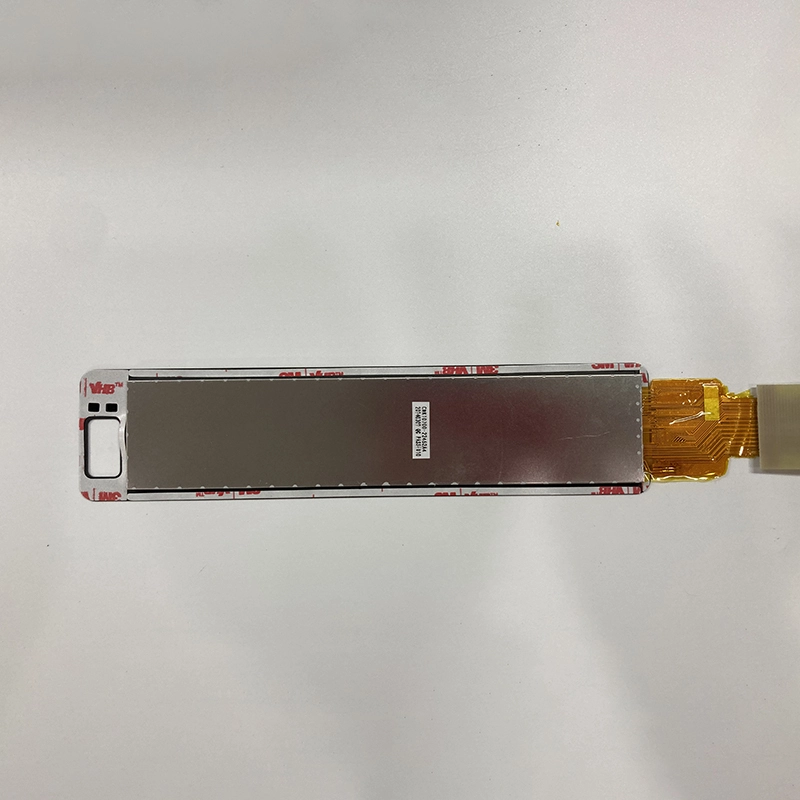

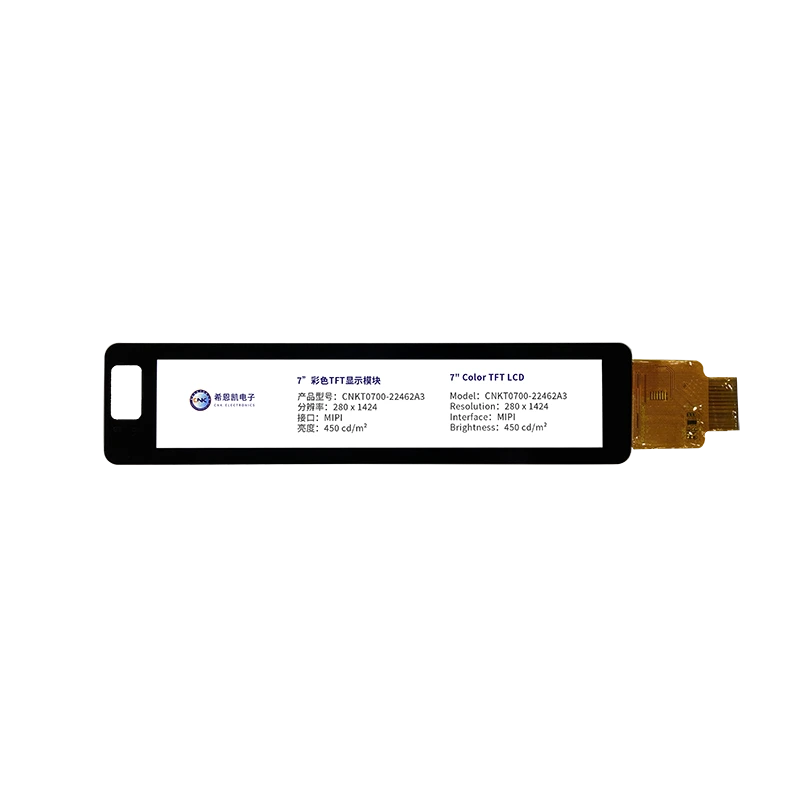

CNK 7”Bar-type TFT Display Module
Model:CNKT0700-22462A3

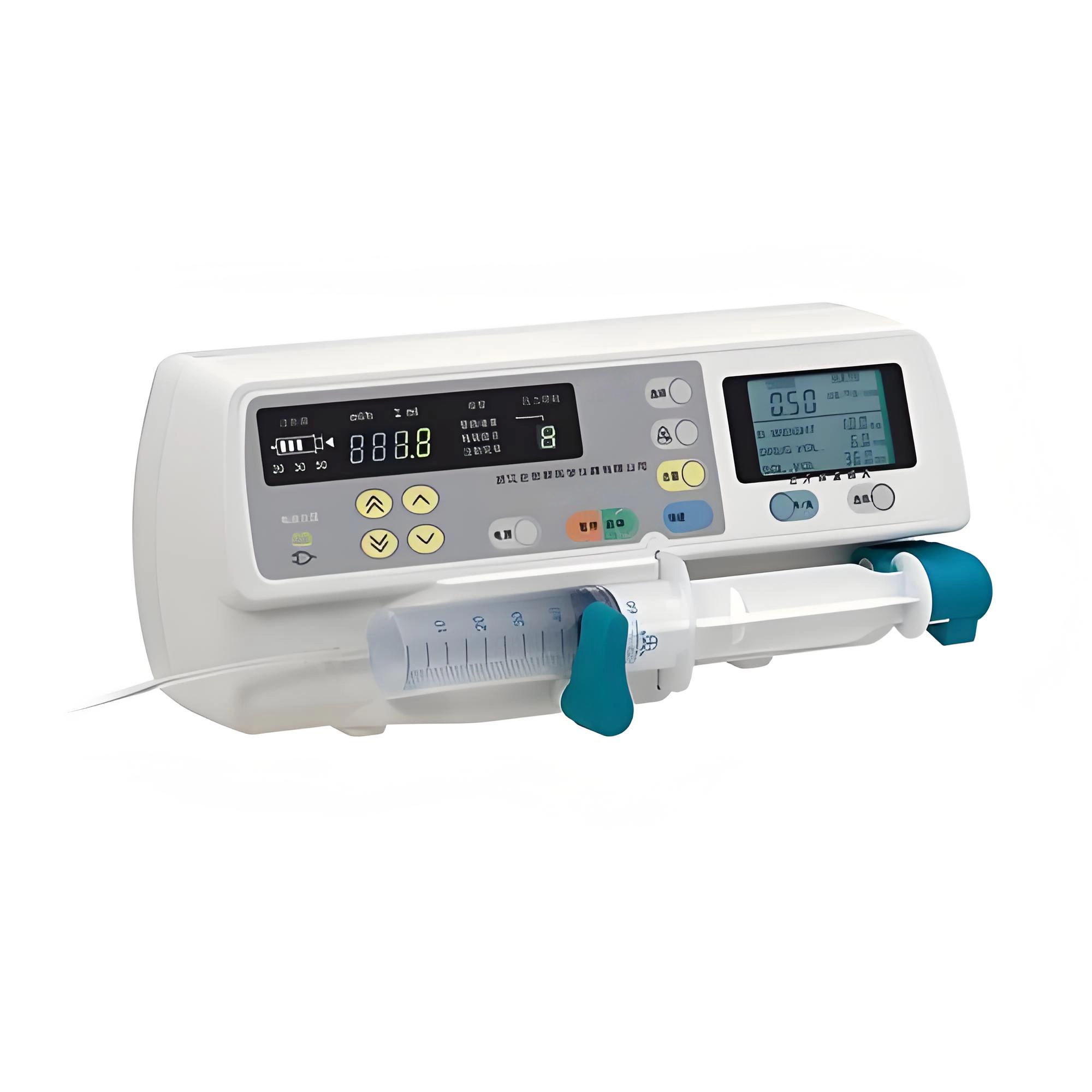

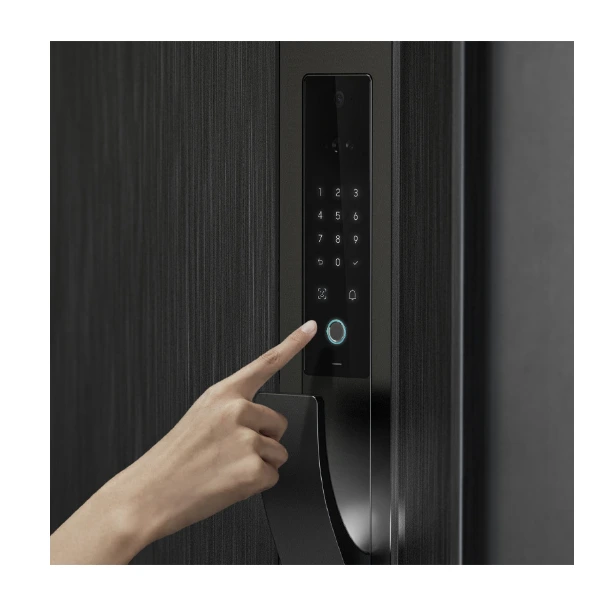

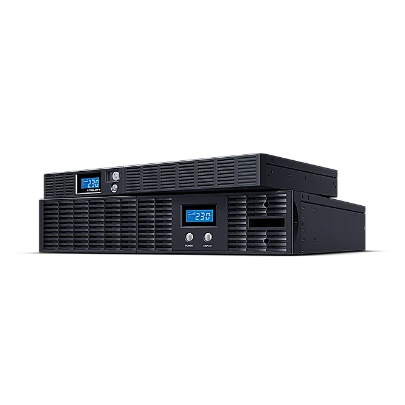

Application: Medical, Smart Home, Energy Storage, etc
Features: 1)High Resolution 2)Optional Tp 3)Optional HMl Solution 4)Wide temperature
1、Resolution:280(RGB)x1424
2、Active Area:170.88mm x33.60 mm
3、Display Type: IPS
4、Viewing Direction: all
5、 Touch Screen: CTP
6、Luminance :450cd/m2
7、LCD Operating Voltage: 5V
8、OperatingTemperature:-20°C~70°C
9、Connector: MIPI
Product Details
Our specialists can help you find the perfect seating for your home.
| Resolution | 280 (RGB) x 1424 | Active Area | 170.88mm x33.60 mm |
| Display Type | IPS | Touch Screen | CTP |
| Luminance | 450cd/m2 | LCD 0perating Voltage | 5V |
| 0perating Teperature | -20°C~70°C | Storage Teperature | -30°C~80°C |
| Viewing Direction | all | Display Mode | Normally Black |
| Backlight | White LED | Connector | MIPI |
| IC | ST72566 | RoHS Compliant | Yes |
just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs
