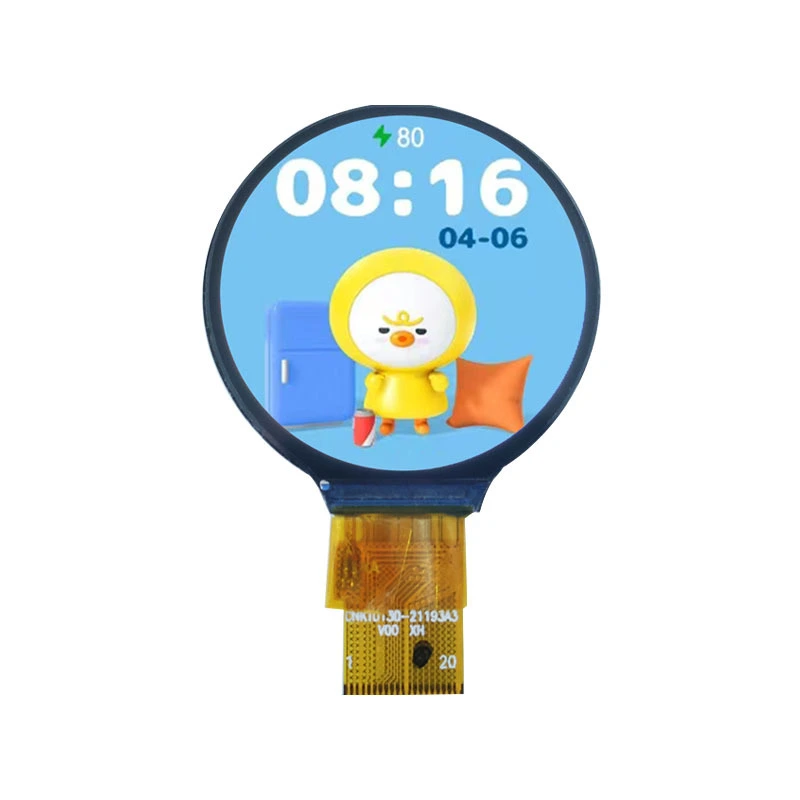

As a technology pioneer among Chinese display manufacturers, Shenzhen CNK Electronic Co., Ltd. officially releases its innovative product—the 1.3” round LCD display (Model: CNKT0130-21193A3). Utilizing advanced TFT technology, this TFT panel features IPS full-viewing angle as its core advantage. Equipped with the GC9A01 driver IC and supporting a SPI 4-wire interface, it delivers HD resolution of 240(RGB)*284px and 262K true-color reproduction, rendering vivid and clear visuals.
With a compact module size of just 35.60*37.74*1.68mm, low power consumption (2.6-3.3V), and operation within demanding temperatures (-20~70°C), it provides highly reliable display solutions for smartwatches, power banks, smart thermos cups, and home appliances. Its circular design breaks traditional custom display constraints, while the transmissive/Normally Black mode ensures visibility even under strong light.
Product Details
Driver IC | GC9A01 | Display Number of Colors | 262K |
Panel Type | IPS | Module Size | 35.60*37.74*1.68mm |
Interface | SPI4 | Power supply | 2.6-3.3V |
Resolution | 240(RGB)*240px | Viewing Direction | ALL |
Display Mode | TRANSMISSIVE,NORMALLY BLACK | Operation temperature | -20-70°C |
