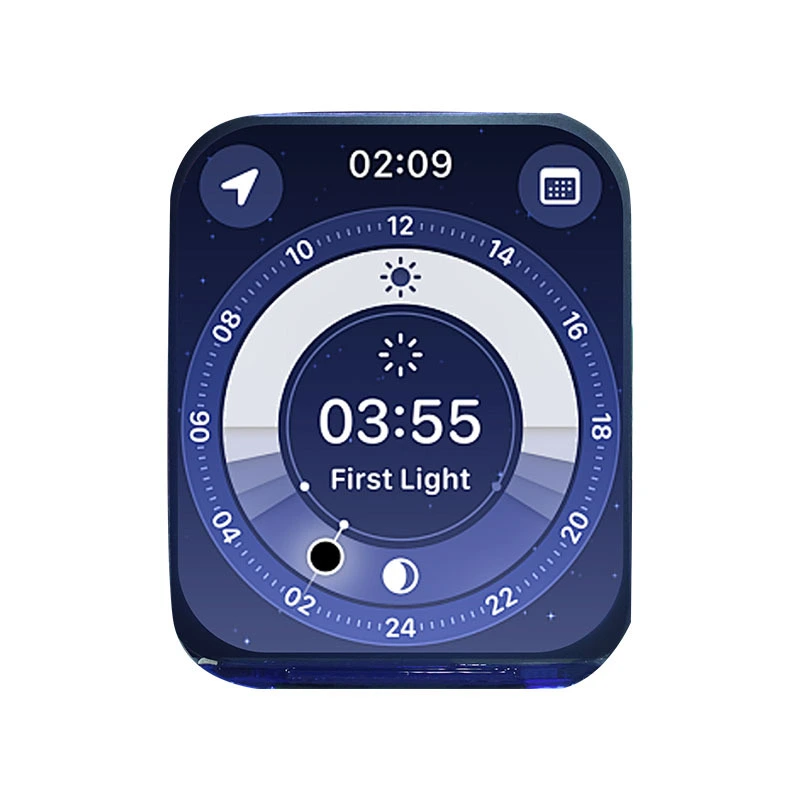

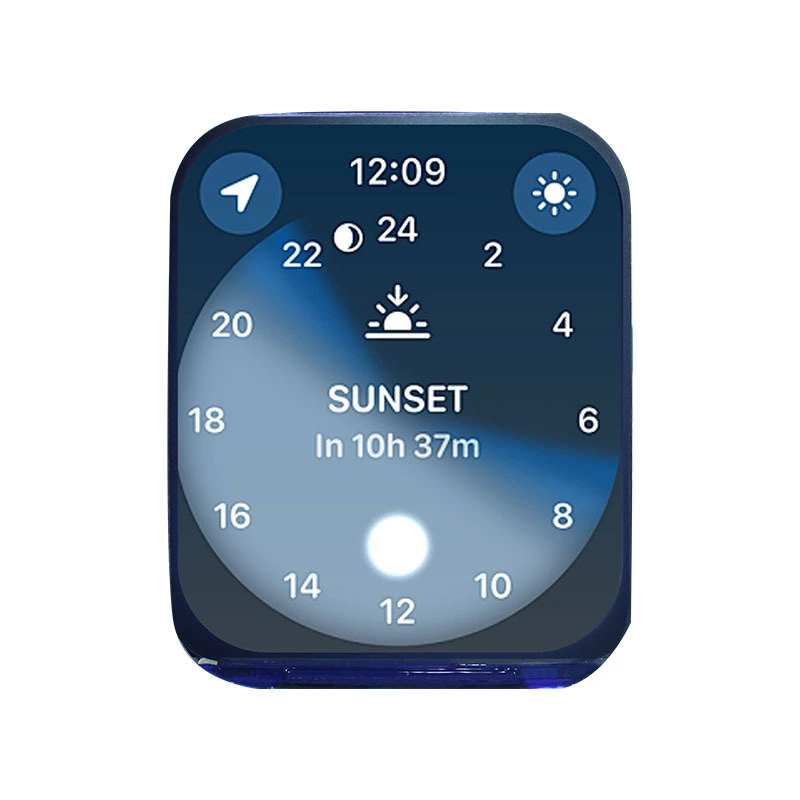

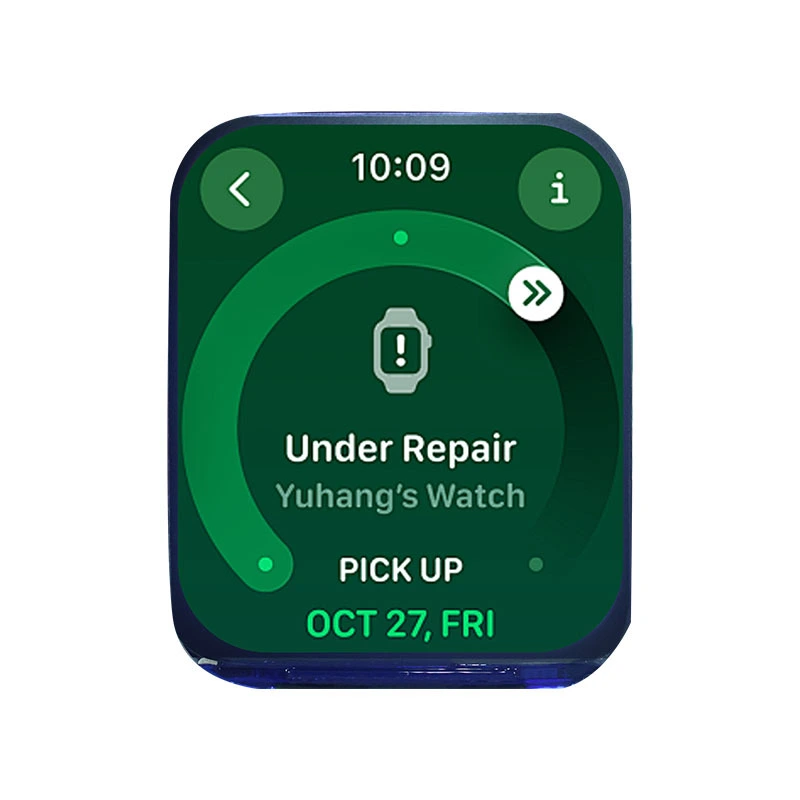

As a professional Chinese display manufacturer, CNK has launched a 1.83-inch TFT display (model: CNKT0183-25386A1). This product uses IPS hard screen technology and is equipped with JD9853 driver IC. It supports 240×284px resolution and 262K full-color display, and has a full range of viewing angles and a transmissive normally black mode. The module size is compact (31.62×39.13×1.9mm), and efficient communication is achieved through the SPI four-wire interface. The operating voltage is 2.6-3.3V and it can adapt to industrial environments from -20℃ to 70℃. This TFT/LCD combines high color reproduction and low power consumption, and is optimized for portable devices, industrial control HMI and other scenarios.

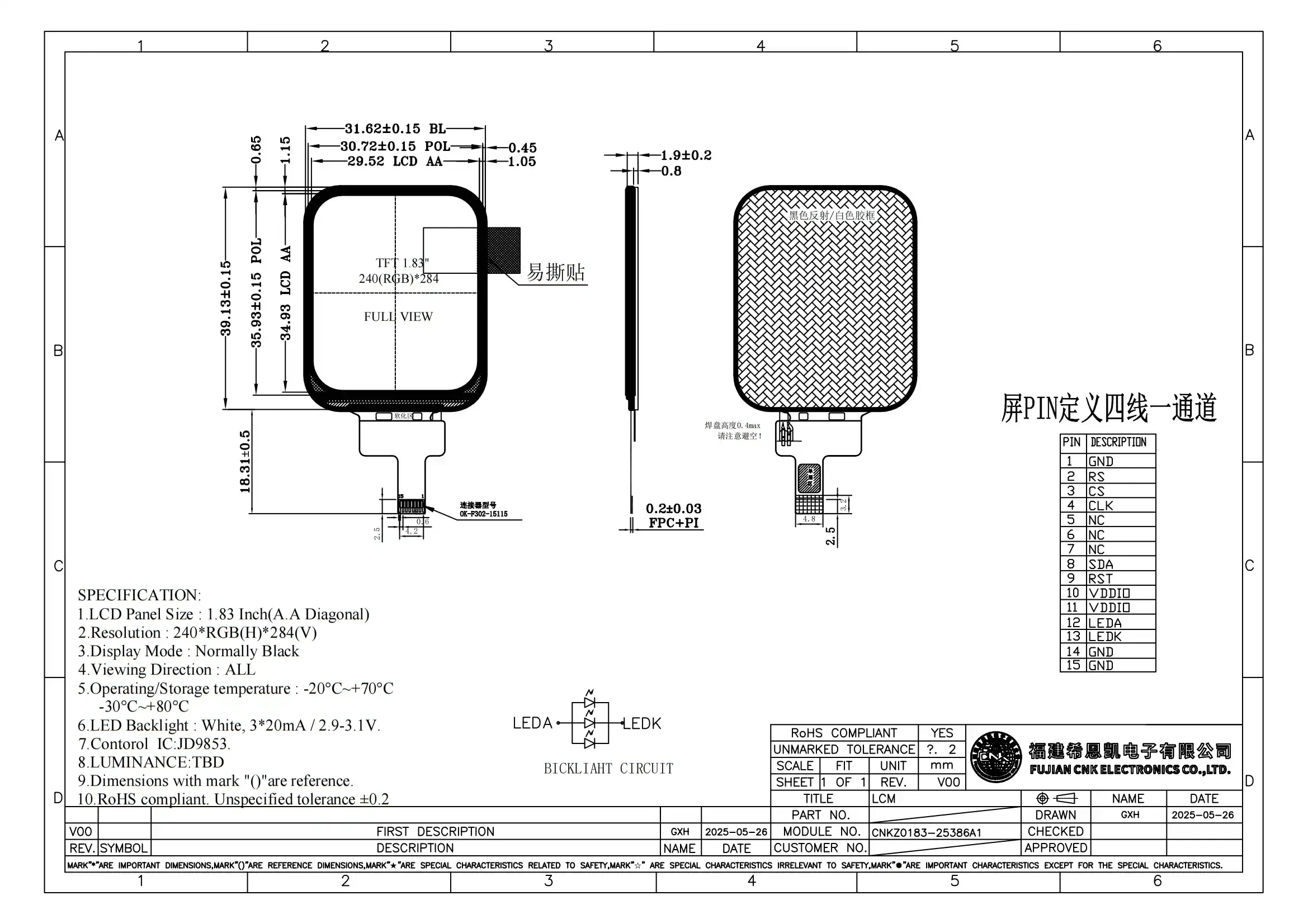

Product Details
Driver IC | JD9853 | Viewing Direction | All |
Panel Type | IPS | Module Size | 31.62 * 39.13 * 1.9mm |
Interface | SPI 4LINE | Active Area | 29.52 * 34.93mm |
Resolution | 240 (RGB) * 284px | Power supply | 2.6-3.3V |
Display Mode | TRANSMISSIVE,NORMALLY BLACK | Operating temperature | -20-70℃ |
Display Number of Colors | 262K | Customization | Support |
